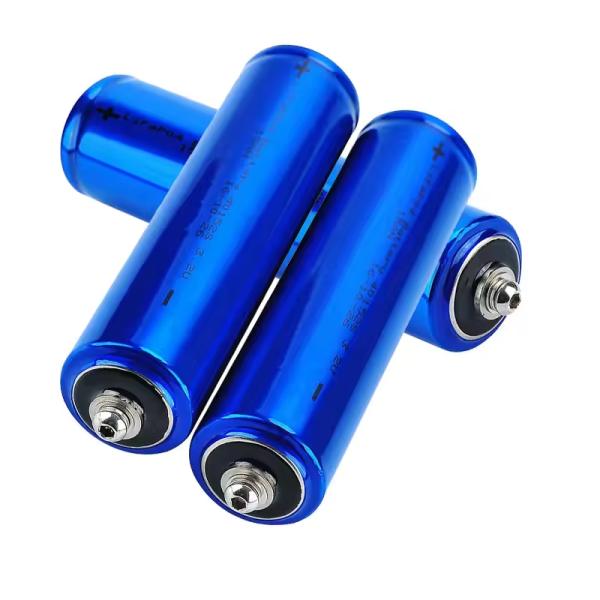

Lifepo4 Battery Cells Headway 40152s 17ah 3.2v Lithium Cells

Product Categories

Zhejiang Xinghai Energy Techology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Battery Size : 40152

Cycle Life : 3000 cycles

Cathode Materials : LiFePO4

Application : Solar Energy Storage Systems

Model Number : 40152S

Operating Temperature(℃) : -20~60°

Size : 40±1mm*H152±1mm

Battery type : LiFePO4

Nominal capacity : 17Ah

Nominal voltage : 3.2V

Internal resistance : ≤2.5mΩ

Cycle life : More than 3000 times

Keywords : Battery Cell

Apllication : Solar Energy System Battery Cell

Brand : Headway

Key words : Li-on Battery Lithium

Contact Now

Lithium Battery Parameter

Specification
Nominal Voltage	3.2V
Nominal Capacity(0.5C,25℃)	17Ah
Weight(Approximate)	500±5g
Recommended Discharge Current	20A
Max. Continuous Current	60A
Max. 3 sec. Pulse	200A
Cut-off Voltage	2.0V
Charge Voltage	3.65V
Recommended Charge Current	10A
Max. Charge current	20A
Internal Resistance	≤4mOhm
Self-discharge rate	≤2% per month
0.5C/1C cycle life	≥2000 Times
OEM and ODM service	Supply
Quality	Grade A

Product Description

Uses: 40152S can be applied to energy storage, 100% electric vehicles and other fields.

Packing & Delivery

Equipment

Certifications

Lifepo4 Battery Cells Headway 40152s 17ah 3.2v Lithium Cells Images
